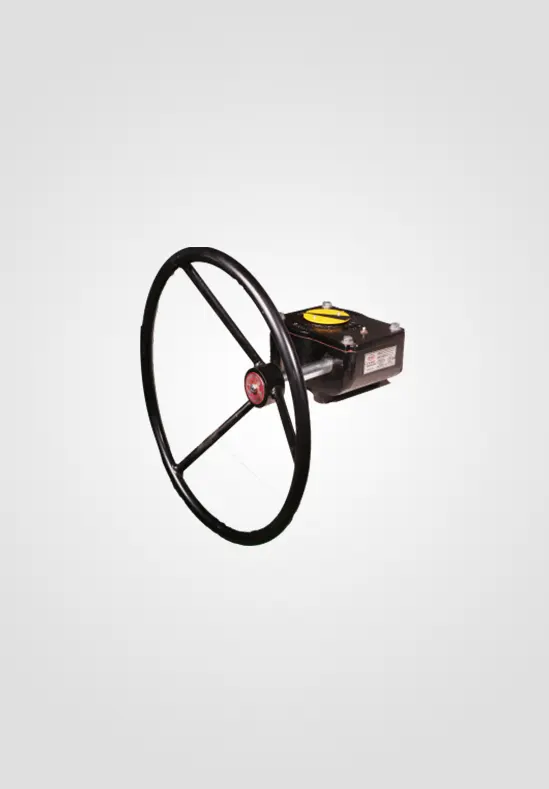

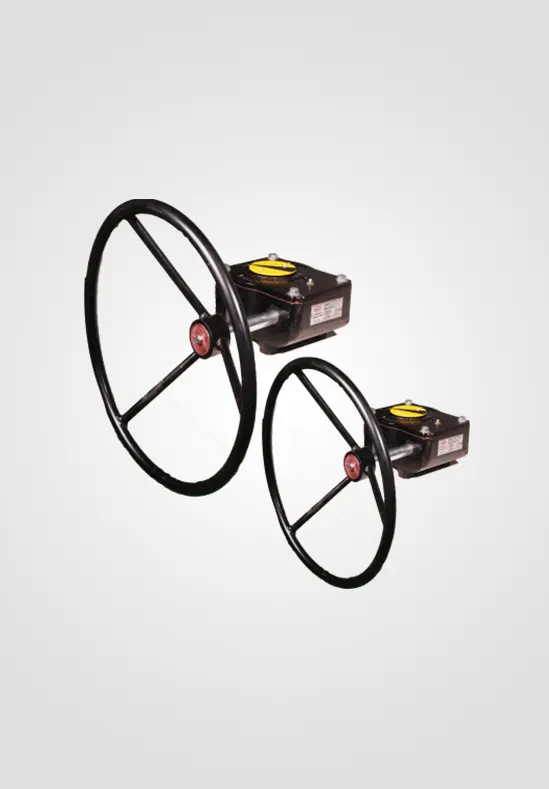

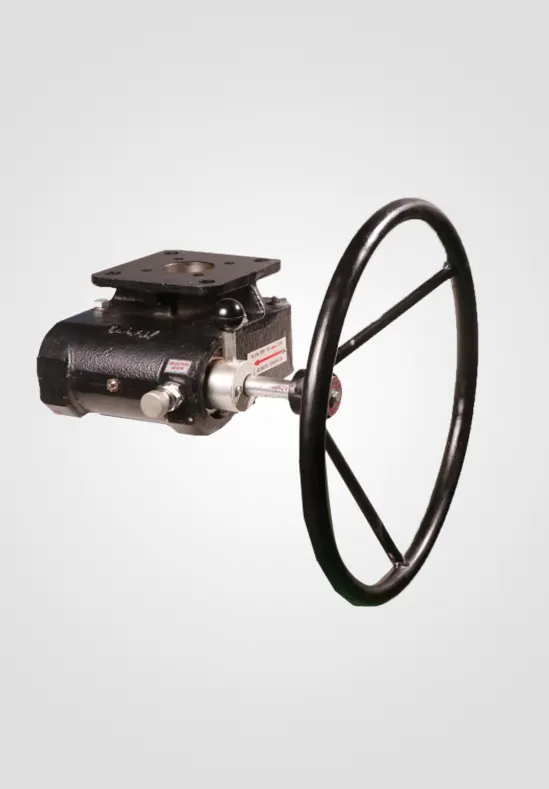

M-torQ Declutchable gearboxes have a system to disengage (declutch) the drive connection between the actuator and valve allowing hand wheel operation of the valve and actuator assembly.
M-torQ can offer gearboxes in Cast Iron, AL housing and SGI as per customers need. These are also available in single and double reduction versions. They can be mounted in most convenient manner. And more suitable where space is at premium.

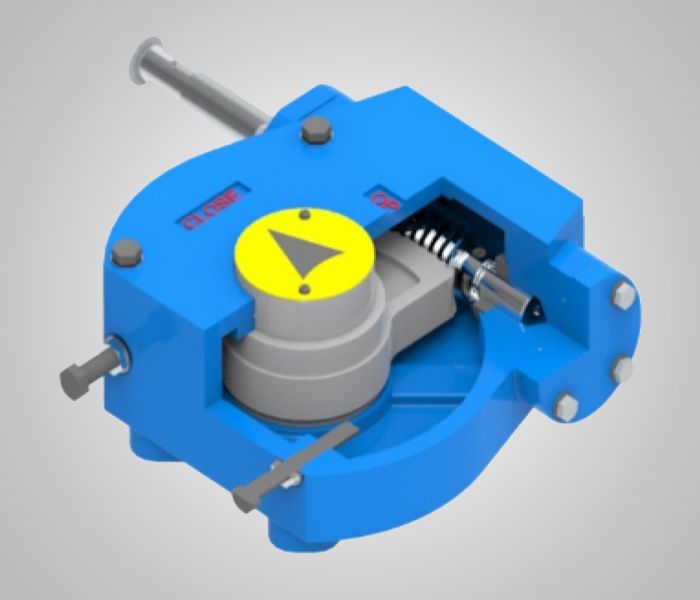

Ground profile of worm and worm wheel with proper lubrication and correct methods of assembling, ensure high efficiencies during working conditions. Generally M-torQ gear boxes are either oil or grease Lubricated. If the selection and mounting of the gear box/geared motor is proper then only maintenance work that is to be performed is of topping the oil/grease at predetermined interval. Gearboxes can be offered in various mounting configuration which makes it versatile for any kind of application.

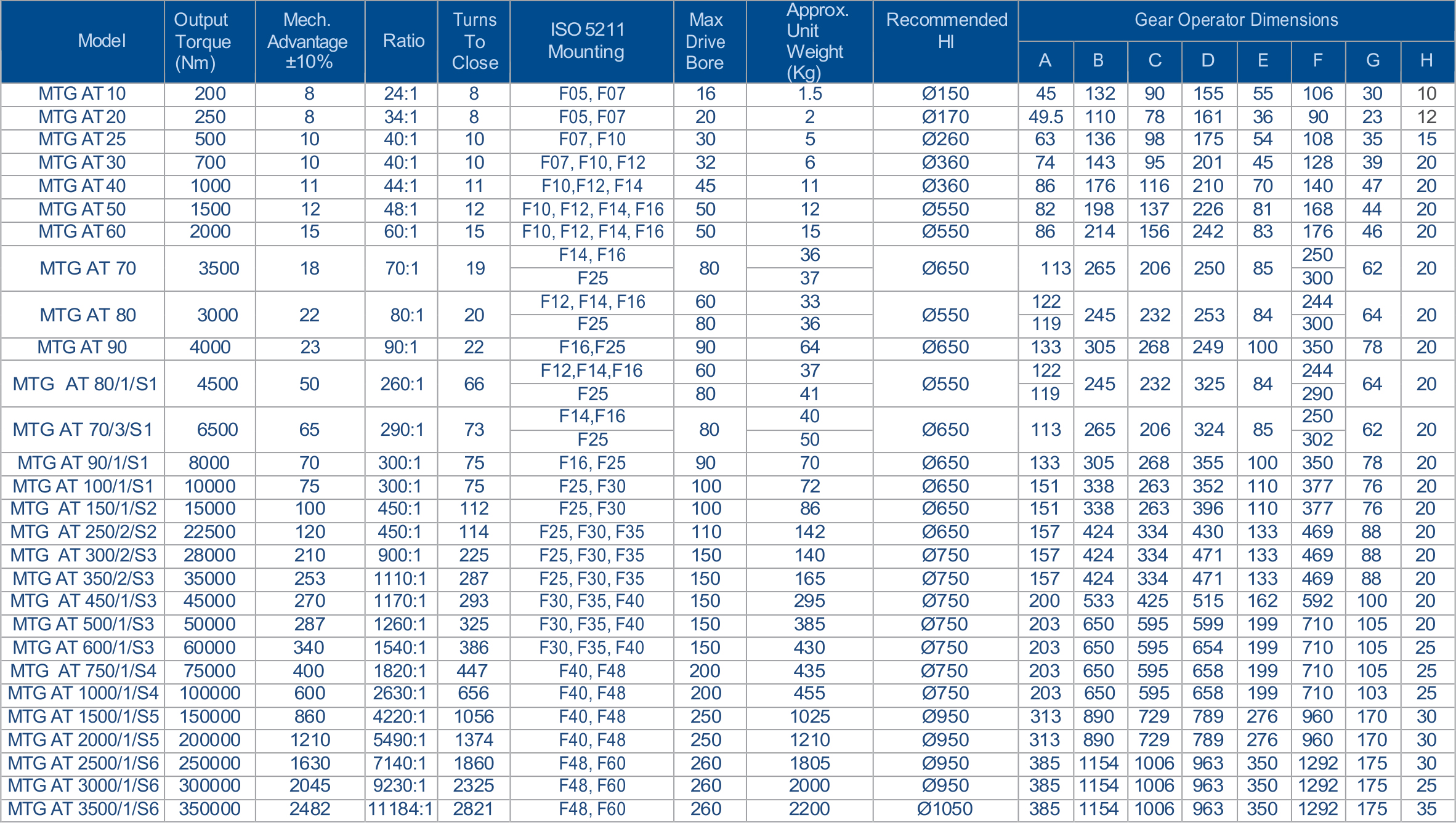

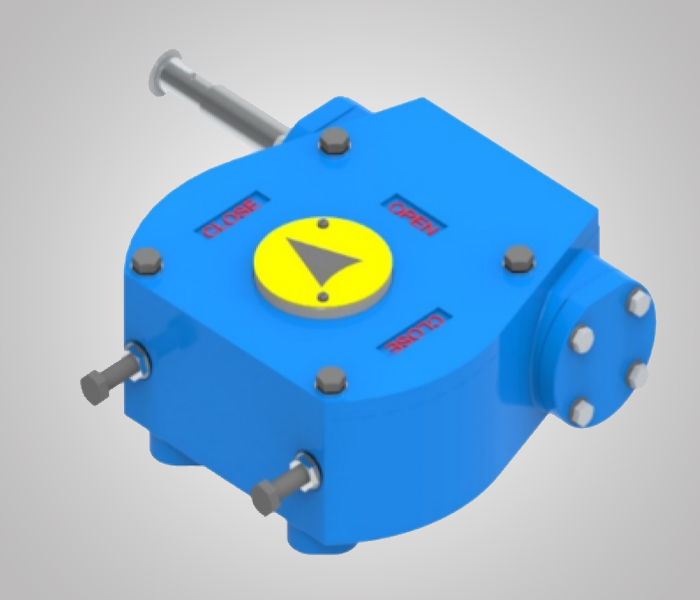

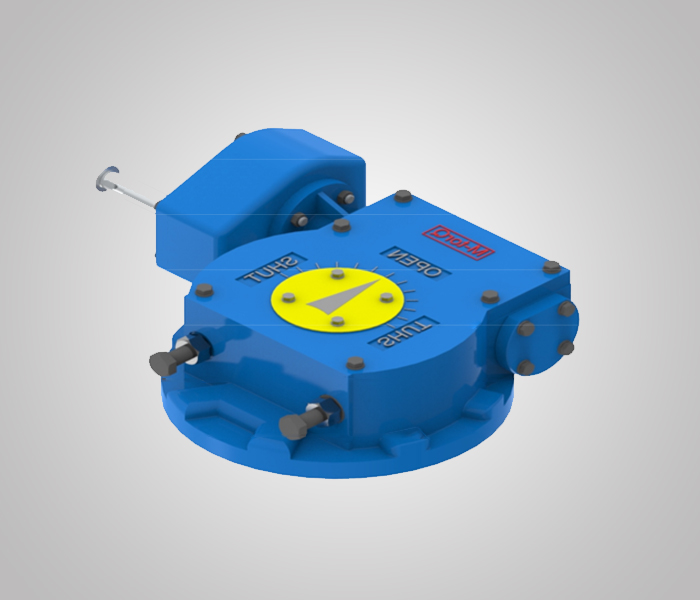

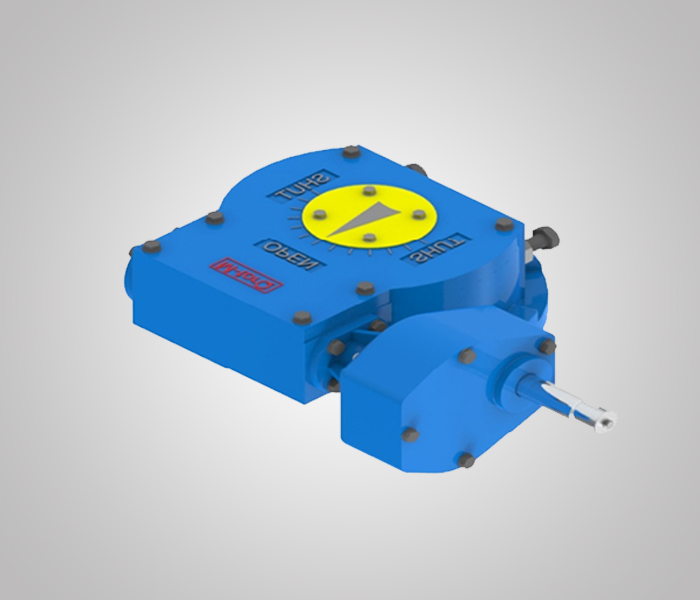

These MTGAT units are our smallest in the M-torQ range with an output torque rating of ……Nm, however for larger applications our range covers output torques up to 35000 Nm.

Standard Features :

• Lean design whilst optimizing robustness and strength.
• Mounting base as per ISO 5211.
• Fully sealed gearbox and completely enclosed gearing.
• Cast iron casing and ductile iron quadrant.

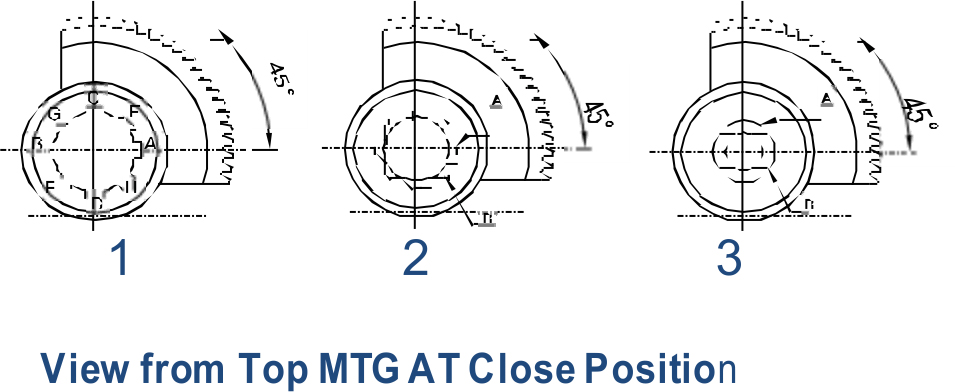

• Stroke 0-90°(+5° adjustable) and zinc plated fasteners
• High performance axial bearings.
• Epoxy primer coating is standard for gearbox.
• Powder coated hand wheels for smooth and easy operation on request.

Options :

• Housing material options (ductileiron /stainless steel).
• Worm shaft, fasteners and hand wheel material option available in stainless steel.
• High temperature variant up to +180°C (+364°F) & low temperature variant up to -40°C available.
• For Marine application (all shafts and fasteners in stainless steel).
• For Padlock arrangement available.
• Namur mounting available forlimit switch box fitment.
• Stainless steel version of gearboxes available for applications in highly corrosive environments forfood and beverage, pharmaceuticaland sanitary facilities

Optional Futures:

• Twin-shaft version available for some models of MTGAT series to reduce number of turns to close for manual operation.
• Part turn 180° operated gearbox option available up to 15000 Nm.
• From top side mounting (“hand wheel, chain wheel or electric actuator” to be mounted or operated from the top of the gearbox and not fromthe side)
• Low temperature variant up to 50°c .

Specification :

• IP67 Certifications

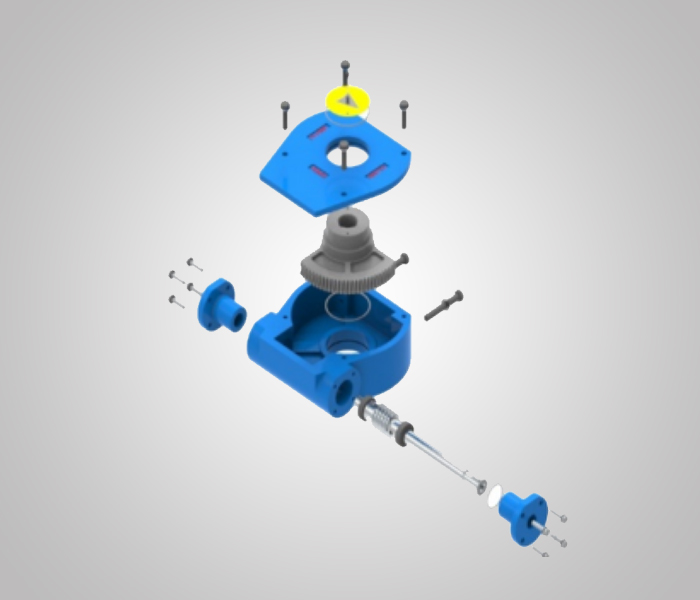

M-torQ Product Diagram
