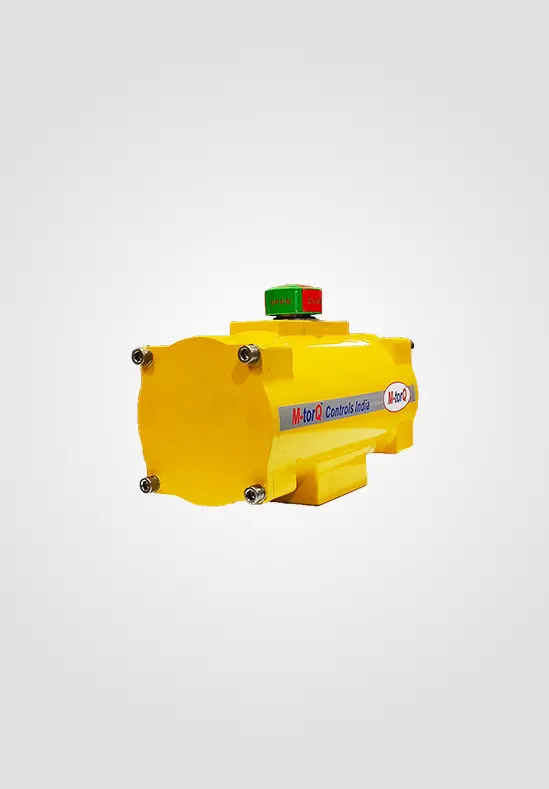

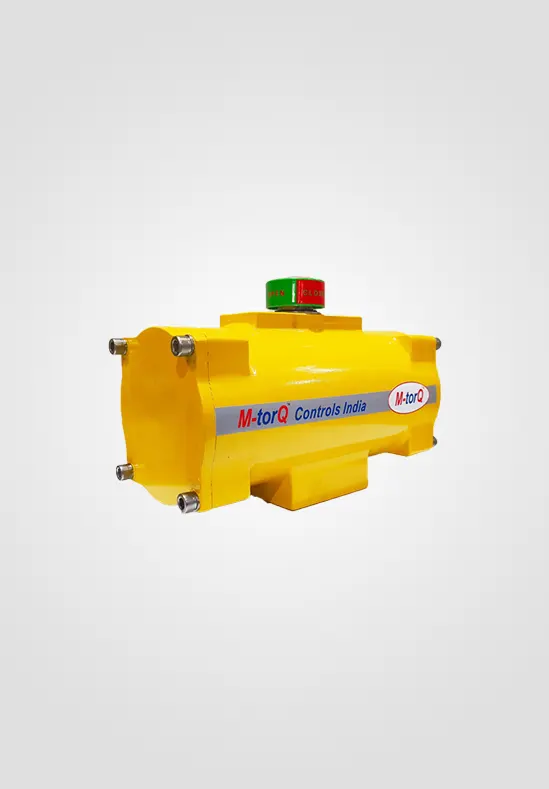

Actuator Features

• Torque from 720 Nm to 1920 Nm
• Mounting flange according to EN ISO 5211
• F10 - F12 - F14 - F16
• In compliance with EN 15714-3
• Rotation angle 92° (-1° +91°)
• Torque: directly proportional to the air supply.
• In the code of standard version GD actuators, it is indicated the breakaway torque in Nm at 5,6 bar air supply.
• Actuator with epoxy painting.
• ATEX version in conformity with directive 2014/34/EU.
• Temperature: from -20°C to +80°C
• Air supply: 5,6 bar; maximum 8,4 bar
• Actuating media: filtered dry compressed air, not necessarily lubricated. In case of lubricated air, either non detergent oil, NBR compatible oil, must be used.
• Higher corrosion resistance.
• Maximum control and accuracy in all the stages of the manufacturing process.
• Installation is allowed in a potential explosive environment.
• Guarantee of the high level of functional safety.
• Higher resistance to the forces inside the actuator.
